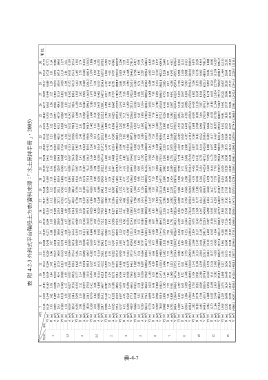

表 附 4-2-3 外斜式平台階段土方表(資料來源：「水土保持手冊」，2005)

° 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 備註
W(m) s(%) 12.28 14.05 15.83 17.63 19.43 21.25 23.08 24.93 26.79 28.67 30.57 32.49 34.43 36.39 38.38 40.40 42.44 44.52 46.63 48.77 50.95 53.17 55.43 57.73
VI 0.124 0.144 0.163 0.184 0.204 0.226 0.248 0.271 0.294 0.318 0.343 0.369 0.395 0.423 0.451 0.481 0.512 0.544 0.578 0.613 0.649 0.688 0.728 0.771
D 1.01 1.02 1.03 1.04 1.05 1.06 1.07 1.09 1.10 1.11 1.12 1.13 1.15 1.16 1.18 1.19 1.21 1.22 1.24 1.26 1.27 1.29 1.31 1.34
1
A ( 2 ) 0.003 0.005 0.008 0.010 0.012 0.015 0.018 0.020 0.023 0.026 0.029 0.032 0.035 0.038 0.042 0.045 0.049 0.053 0.057 0.061 0.065 0.070 0.075 0.080
V ( 3 ) 28.5 50.6 72.9 95.4 117.9 140.6 163.5 186.6 209.9 233.4 257.1 281.1 305.4 329.9 354.8 380.0 405.5 431.5 457.9 484.6 511.9 539.6 567.9 596.6
VI 0.190 0.219 0.249 0.280 0.312 0.345 0.378 0.413 0.449 0.485 0.523 0.562 0.603 0.645 0.689 0.734 0.781 0.830 0.882 0.935 0.991 1.050 1.112 1.177
D 1.54 1.56 1.57 1.59 1.61 1.62 1.64 1.66 1.67 1.69 1.71 1.73 1.75 1.77 1.79 1.82 1.84 1.87 1.89 1.92 1.95 1.98 2.01 2.04
1.5
A ( 2 ) 0.016 0.022 0.027 0.033 0.038 0.044 0.050 0.057 0.063 0.070 0.077 0.084 0.091 0.099 0.107 0.115 0.123 0.132 0.142 0.151 0.162 0.172 0.183 0.195
V ( 3 ) 105.2 138.4 171.8 205.6 239.3 273.4 307.8 342.4 377.3 412.6 448.2 484.2 520.6 557.3 594.6 632.5 670.8 709.8 749.3 789.4 830.3 871.9 914.3 957.4
VI 0.255 0.295 0.335 0.377 0.420 0.464 0.509 0.555 0.603 0.653 0.704 0.756 0.811 0.867 0.926 0.987 1.050 1.117 1.186 1.258 1.333 1.412 1.495 1.583
D 2.08 2.10 2.12 2.14 2.16 2.18 2.20 2.23 2.25 2.28 2.30 2.33 2.36 2.38 2.41 2.44 2.48 2.51 2.54 2.58 2.62 2.66 2.70 2.74
2
A ( 2 ) 0.038 0.047 0.057 0.068 0.078 0.089 0.100 0.111 0.123 0.135 0.147 0.160 0.173 0.187 0.201 0.216 0.232 0.248 0.265 0.282 0.301 0.320 0.340 0.361
V ( 3 ) 182.0 226.3 270.8 315.8 360.8 406.3 452.0 498.3 544.8 591.8 639.3 687.3 735.8 784.8 834.5 885.0 936.0 988.0 1040.8 1094.3 1148.8 1204.3 1260.8 1318.3
VI 0.320 0.370 0.421 0.474 0.527 0.583 0.639 0.698 0.758 0.820 0.884 0.950 1.019 1.090 1.164 1.240 1.320 1.403 1.490 1.580 1.675 1.774 1.879 1.988
D 2.61 2.64 2.66 2.69 2.71 2.74 2.77 2.80 2.83 2.86 2.89 2.93 2.96 2.99 3.03 3.07 3.11 3.15 3.19 3.24 3.29 3.34 3.39 3.44
2.5
A ( 2 ) 0.068 0.083 0.098 0.114 0.131 0.148 0.165 0.183 0.201 0.220 0.240 0.260 0.281 0.303 0.326 0.349 0.374 0.399 0.426 0.453 0.482 0.513 0.545 0.578
V ( 3 ) 258.7 314.1 369.7 425.9 482.2 539.1 596.3 654.1 712.2 770.9 830.3 890.3 950.9 1012.2 1074.4 1137.5 1201.3 1266.3 1332.2 1399.1 1467.2 1536.6 1607.2 1679.1
VI 0.386 0.446 0.507 0.570 0.635 0.701 0.770 0.840 0.913 0.987 1.065 1.144 1.227 1.312 1.401 1.493 1.589 1.689 1.794 1.903 2.017 2.137 2.262 2.394
D 3.14 3.17 3.20 3.24 3.27 3.30 3.33 3.37 3.41 3.44 3.48 3.52 3.56 3.61 3.65 3.70 3.74 3.79 3.85 3.90 3.96 4.02 4.08 4.15
3
A ( 2 ) 0.105 0.128 0.150 0.173 0.197 0.222 0.247 0.273 0.300 0.327 0.356 0.385 0.416 0.447 0.480 0.514 0.549 0.586 0.625 0.665 0.707 0.751 0.797 0.846
V ( 3 ) 335.4 401.9 468.6 536.1 603.6 671.9 740.5 809.9 879.6 950.1 1021.4 1093.4 1166.1 1239.6 1314.3 1390.0 1466.5 1544.5 1623.6 1703.9 1785.6 1868.9 1953.6 2039.9
VI 0.517 0.597 0.679 0.764 0.850 0.939 1.031 1.125 1.222 1.322 1.425 1.532 1.643 1.757 1.876 2.000 2.128 2.262 2.402 2.548 2.700 2.861 3.029 3.206
D 4.21 4.25 4.29 4.33 4.38 4.42 4.47 4.51 4.56 4.61 4.66 4.72 4.77 4.83 4.89 4.95 5.01 5.08 5.15 5.22 5.30 5.38 5.46 5.55
4
A ( 2 ) 0.206 0.245 0.286 0.328 0.370 0.414 0.459 0.506 0.554 0.603 0.654 0.707 0.762 0.818 0.877 0.938 1.001 1.068 1.137 1.209 1.284 1.363 1.446 1.533
V ( 3 ) 488.9 577.5 666.5 756.5 846.5 937.5 1029.0 1121.5 1214.5 1308.5 1403.5 1499.5 1596.5 1694.5 1794.0 1895.0 1997.0 2101.0 2206.5 2313.5 2422.5 2533.5 2646.5 2761.5
VI 0.648 0.748 0.851 0.957 1.065 1.177 1.291 1.410 1.531 1.657 1.786 1.920 2.059 2.202 2.351 2.506 2.667 2.835 3.010 3.193 3.384 3.585 3.796 4.017
D 5.27 5.32 5.38 5.43 5.48 5.54 5.60 5.65 5.72 5.78 5.84 5.91 5.98 6.05 6.13 6.20 6.28 6.37 6.45 6.55 6.64 6.74 6.85 6.96
5
農-4-7
A ( 2 ) 0.339 0.401 0.465 0.530 0.597 0.666 0.737 0.810 0.886 0.963 1.043 1.126 1.212 1.301 1.393 1.489 1.588 1.692 1.801 1.914 2.032 2.156 2.287 2.424
V ( 3 ) 642.4 753.1 864.4 976.9 1089.4 1203.1 1317.5 1433.1 1549.4 1666.9 1785.6 1905.6 2026.9 2149.4 2273.8 2400.0 2527.5 2657.5 2789.4 2923.1 3059.4 3198.1 3339.4 3483.1
VI 0.778 0.899 1.023 1.150 1.280 1.415 1.552 1.695 1.841 1.991 2.147 2.308 2.475 2.647 2.826 3.012 3.205 3.407 3.618 3.838 4.068 4.309 4.563 4.829
D 6.34 6.40 6.46 6.53 6.59 6.66 6.73 6.80 6.87 6.95 7.02 7.10 7.19 7.27 7.36 7.46 7.55 7.65 7.76 7.87 7.98 8.10 8.23 8.36
6
A ( 2 ) 0.505 0.594 0.686 0.781 0.878 0.978 1.080 1.186 1.295 1.407 1.523 1.642 1.766 1.894 2.027 2.166 2.310 2.460 2.617 2.780 2.951 3.131 3.319 3.517
V ( 3 ) 795.9 928.8 1062.3 1197.3 1332.3 1468.8 1606.0 1744.8 1884.3 2025.3 2167.8 2311.8 2457.3 2604.3 2753.5 2905.0 3058.0 3214.0 3372.3 3532.8 3696.3 3862.8 4032.3 4204.8
VI 0.909 1.050 1.195 1.344 1.496 1.652 1.813 1.979 2.150 2.326 2.508 2.696 2.890 3.092 3.301 3.519 3.744 3.980 4.226 4.483 4.751 5.033 5.329 5.640
D 7.40 7.48 7.55 7.62 7.70 7.78 7.86 7.94 8.02 8.11 8.20 8.30 8.40 8.50 8.60 8.71 8.82 8.94 9.06 9.19 9.33 9.47 9.61 9.77
7
A ( 2 ) 0.703 0.826 0.951 1.080 1.213 1.349 1.488 1.633 1.781 1.934 2.092 2.255 2.424 2.599 2.781 2.970 3.166 3.371 3.585 3.807 4.041 4.286 4.543 4.813
V ( 3 ) 949.4 1104.4 1260.1 1417.6 1575.1 1734.4 1894.5 2056.4 2219.1 2383.6 2549.9 2717.9 2887.6 3059.1 3233.3 3410.0 3588.5 3770.5 3955.1 4142.4 4333.1 4527.4 4725.1 4926.4
VI 1.040 1.201 1.367 1.537 1.711 1.890 2.074 2.264 2.459 2.661 2.869 3.084 3.306 3.536 3.776 4.025 4.283 4.553 4.834 5.128 5.435 5.758 6.096 6.452
D 8.47 8.55 8.63 8.72 8.81 8.90 8.99 9.08 9.18 9.28 9.38 9.49 9.60 9.72 9.84 9.96 10.09 10.23 10.37 10.51 10.67 10.83 11.00 11.18
8
A ( 2 ) 0.934 1.094 1.259 1.428 1.601 1.779 1.962 2.151 2.344 2.545 2.752 2.965 3.186 3.415 3.653 3.900 4.157 4.425 4.705 4.996 5.302 5.622 5.959 6.312
V ( 3 ) 1102.8 1280.0 1458.0 1638.0 1818.0 2000.0 2183.0 2368.0 2554.0 2742.0 2932.0 3124.0 3318.0 3514.0 3713.0 3915.0 4119.0 4327.0 4538.0 4752.0 4970.0 5192.0 5418.0 5648.0
VI 1.302 1.504 1.710 1.924 2.141 2.366 2.596 2.834 3.078 3.330 3.591 3.860 4.138 4.426 4.726 5.037 5.360 5.698 6.050 6.418 6.802 7.206 7.630 8.075
D 10.60 10.70 10.81 10.91 11.02 11.13 11.25 11.37 11.49 11.62 11.75 11.88 12.02 12.16 12.31 12.47 12.63 12.80 12.98 13.16 13.35 13.55 13.76 13.99
10
A ( 2 ) 1.495 1.746 2.003 2.268 2.539 2.818 3.104 3.400 3.704 4.017 4.341 4.676 5.022 5.381 5.753 6.141 6.542 6.963 7.401 7.857 8.336 8.838 9.365 9.919
V ( 3 ) 1409.8 1631.3 1853.8 2078.8 2303.8 2531.3 2760.0 2991.3 3223.8 3458.8 3696.3 3936.3 4178.8 4423.8 4672.5 4925.0 5180.0 5440.0 5703.8 5971.3 6243.8 6521.3 6803.8 7091.3
VI 1.563 1.806 2.054 2.310 2.572 2.841 3.118 3.403 3.697 3.999 4.312 4.636 4.970 5.316 5.676 6.050 6.438 6.844 7.266 7.707 8.170 8.655 9.164 9.698
D 12.73 12.85 12.98 13.11 13.24 13.37 13.51 13.65 13.80 13.95 14.11 14.27 14.43 14.61 14.79 14.97 15.17 15.37 15.58 15.80 16.03 16.28 16.53 16.80
12
A ( 2 ) 2.186 2.548 2.919 3.302 3.692 4.095 4.508 4.934 5.372 5.825 6.292 6.775 7.275 7.791 8.328 8.888 9.467 10.073 10.705 11.364 12.054 12.779 13.539 14.337
V ( 3 ) 1716.8 1982.5 2249.5 2519.5 2789.5 3062.5 3337.0 3614.5 3893.5 4175.5 4460.5 4748.5 5039.5 5333.5 5632.0 5935.0 6241.0 6553.0 6869.5 7190.5 7517.5 7850.5 8189.5 8534.5
VI 1.956 2.259 2.570 2.890 3.217 3.555 3.901 4.258 4.625 5.003 5.395 5.799 6.218 6.650 7.100 7.569 8.054 8.562 9.091 9.642 10.221 10.827 11.464 12.133
D 15.93 16.08 16.24 16.40 16.56 16.73 16.90 17.08 17.26 17.45 17.65 17.85 18.06 18.28 18.50 18.73 18.98 19.23 19.50 19.77 20.06 20.36 20.68 21.02
15
A ( 2 ) 22.91 22.99 23.07 23.15 23.23 23.31 23.40 23.49 23.58 23.68 23.77 23.87 23.98 24.09 24.20 24.32 24.44 24.57 24.70 24.84 24.98 25.13 25.29 25.46
V ( 3 ) 14386.1 14297.5 14208.5 14118.5 14028.5 13937.5 13846.0 13753.5 13660.5 13566.5 13471.5 13375.5 13278.5 13180.5 13081.0 12980.0 12878.0 12774.0 12668.5 12561.5 12452.5 12341.5 12228.5 12113.5
